E-Bike

HIPO Systems is a supplier of connectors and connector assemblies for Power Supply, Data/Telecommunications, Electric Bike Industry and Electric Car Industry for many well-known manufacturer worldwide.
HIPO Systems designs and supplies connectors and connector assemblies.

From standard industry upto fully custom componts. Contact us and will offer you the product that you need.

Below you will find some examples of products we already supplied.

  • Motor cable
  • Signal connector
  • Battery connector
  • Main cable
  • Splitter
  • Customized connector
  • Customized solution
  • Cable assembly

Signal Transmission Series EB-A

Rated current
≤2A
Withstanding voltage
100V DC
Protection class
IP65
Working temperature
-40°C~65°C
Durability
>=50 cycles
Contact plating
gold
Number of contacts
2,3,4
Cable information
OD: 3.6mm, SIZE: 2/3/4*0.25mm²
2 Pin
3 Pin
4 Pin

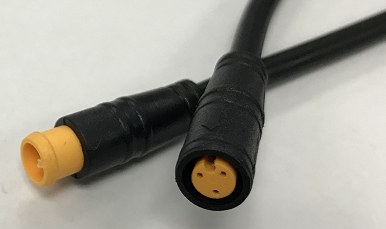

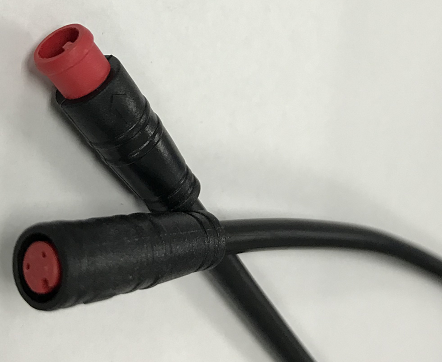

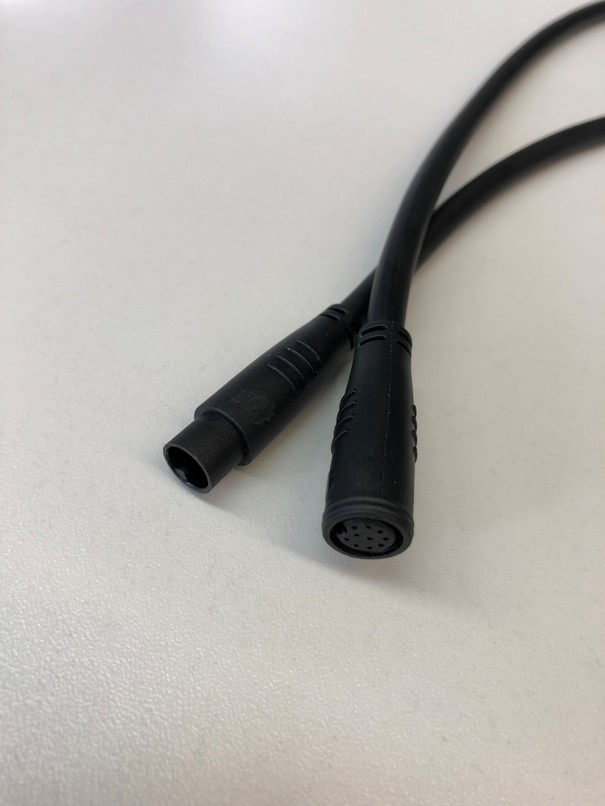

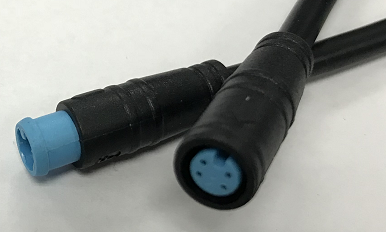

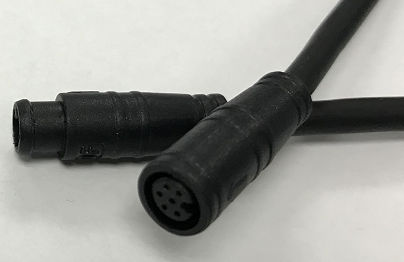

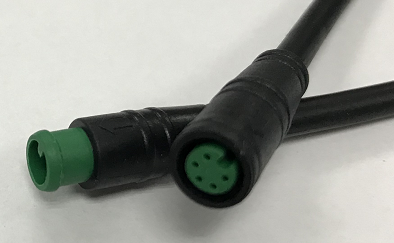

Signal Transmission Series EB-S

Rated current
≤2A
Withstanding voltage
100V DC
Protection class
IP65
Working temperature
-40℃~65℃
Durability
≥ 50 cycles
Maximum OD
7mm (2~6pol),10.5mm (8,10pol)
Contact plating
gold
Number of contacts
2~6、8、10
Cable information
OD: 4.0mm, SIZE: 2~6*0.14mm²（2~6pol） OD: 6.0mm, SIZE: 8/10*0.14mm²（8/10pol）
2 Pins
3 Pins
4 Pins
5 Pins
6 Pins
10 Pins

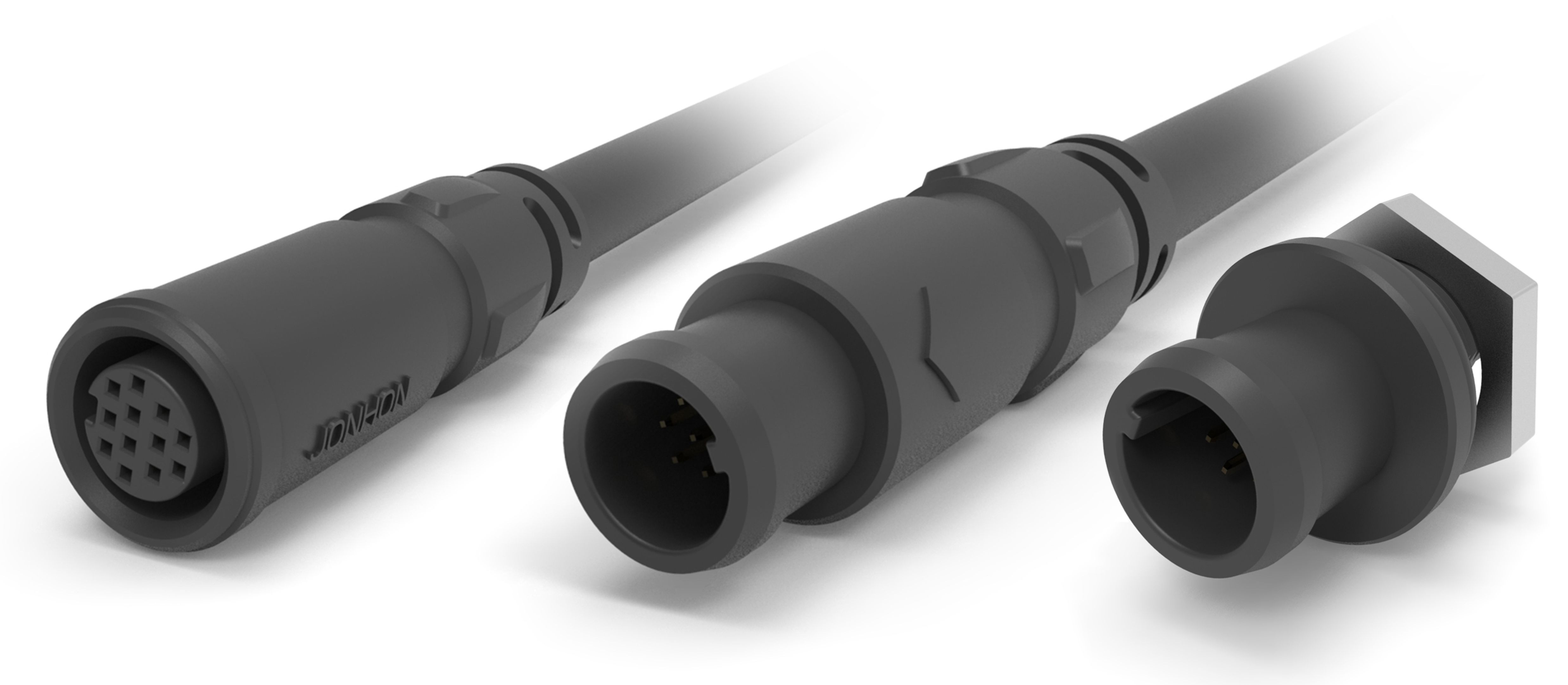

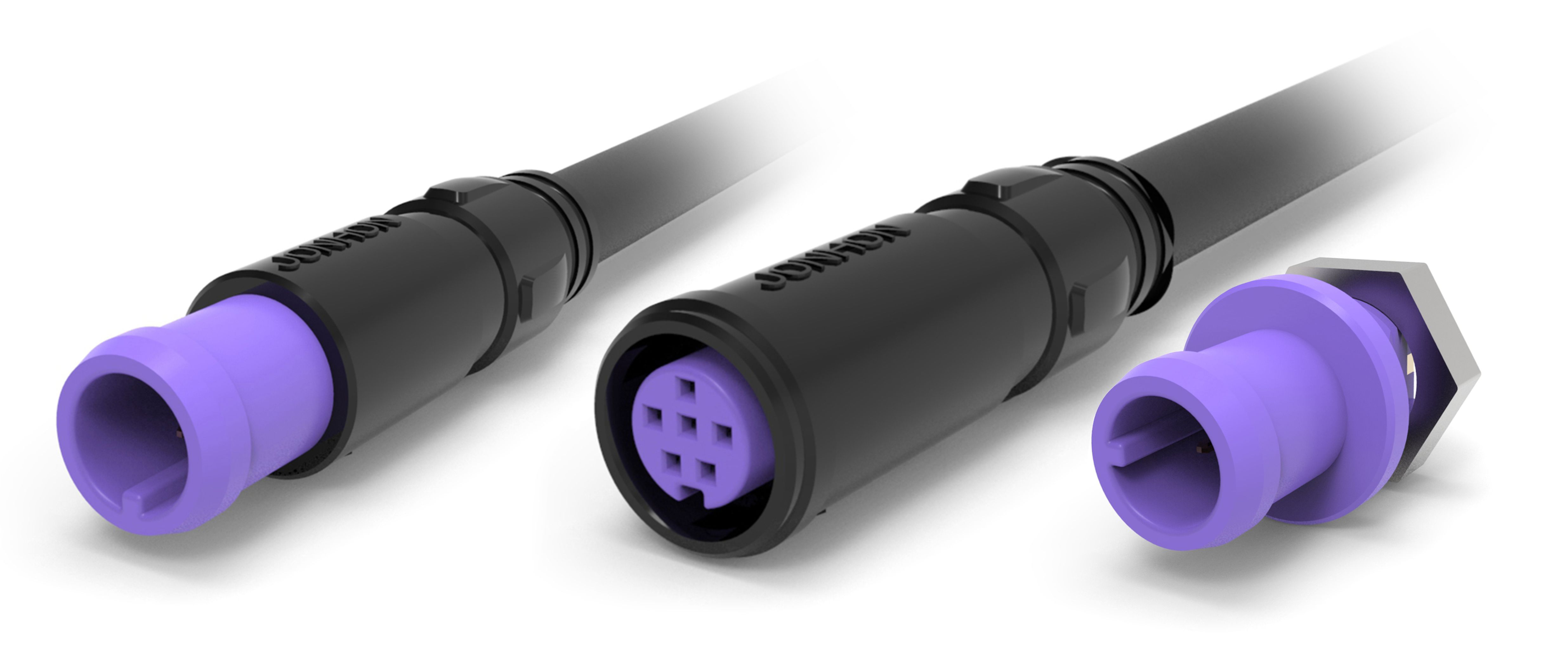

Signal Transmission Series EB-Q

Rated current
≤1A
Withstanding voltage
100V DC
Protection class
IP66
Working temperature
40℃~80℃
Durability
≥ 100 cycles
Maximum OD
9mm(7~12Pol), 7mm(2~6Pol)
Contact plating
gold
Number of contacts
2-12
Cable information
OD: 4.5mm(2-6pol)，5.5mm（7-12pol）


2 Pol
3 Pol
4 Pol
5 Pol
6 Pol
7 Pol
8 Pol
9 Pol
10 Pol
11 Pol
12 Pol

Signal Transmission Series EB-H-M6

Rated current
≤2A
Withstanding voltage
100V DC
Protection class
IP65
Working temperature
-40℃~65℃
Durability
≥ 100 cycles
Maximum OD
8.5mm
Contact plating
gold
Number of contacts
4
Cable information
OD: 3.6mm, SIZE: 4*0.25mm²
4 Pins
4 Pins

Signal Transmission Series EB-H-M9

Rated current
≤2A
Withstanding voltage
100V DC
Protection class
IP65
Working temperature
-40℃~65℃
Durability
≥ 100 cycles
Maximum OD
10.5mm
Contact plating
gold
Number of contacts
6
Cable information
OD: 4mm, SIZE: 6*0.25mm²
6 Pins
6 Pins

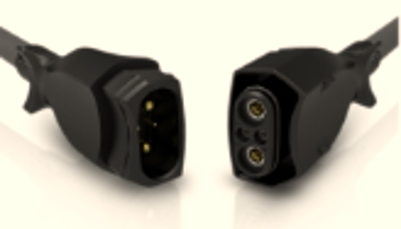

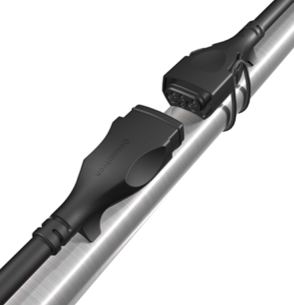

Power Transmission Series EB-E

Rated current
≤40A, ≤5A (signal)
Withstanding voltage
100V DC
Protection class
IP65
Working temperature
-40℃~65℃
Durability
≥ 100 cycles
Maximum OD
25*17mm
Contact plating
gold
Number of contacts
4 (2P+2S)
Cable information
OD: 8mm, SIZE: 2*2.5mm²+2*0.25mm²
4 Pins

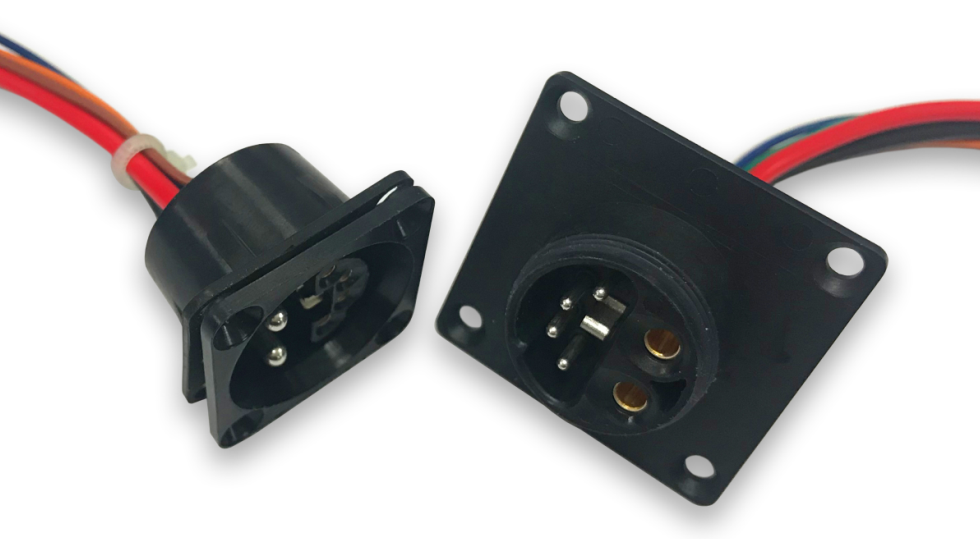

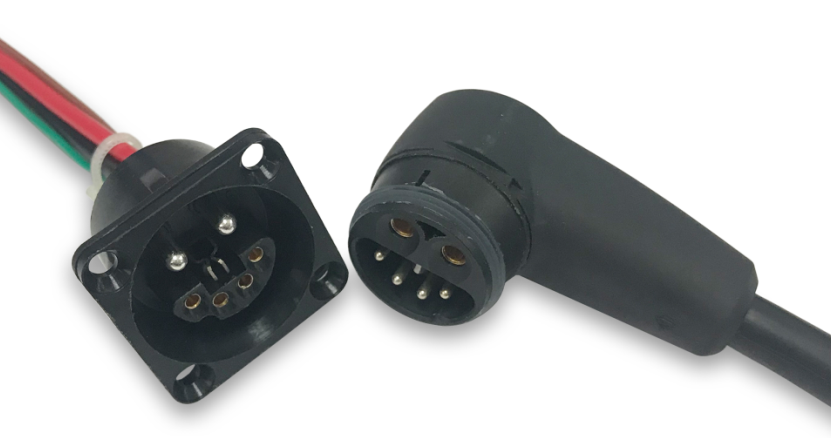

Power Transmission Series EB-388 (BE/BC Solution)

Rated current
≤40A, ≤5A (signal)
Withstanding voltage
100V DC
Protection class
IP65
Working temperature
40℃~65℃
Durability
≥ 2000 cycles
Maximum outline
25*17mm
Contact plating
gold(P)/silver(S)
Number of contacts
6 (2P+4S)
Cable information
OD: 8mm, SIZE: 2*2.5mm²+2*0.25mm²
6 Pins
6 Pins

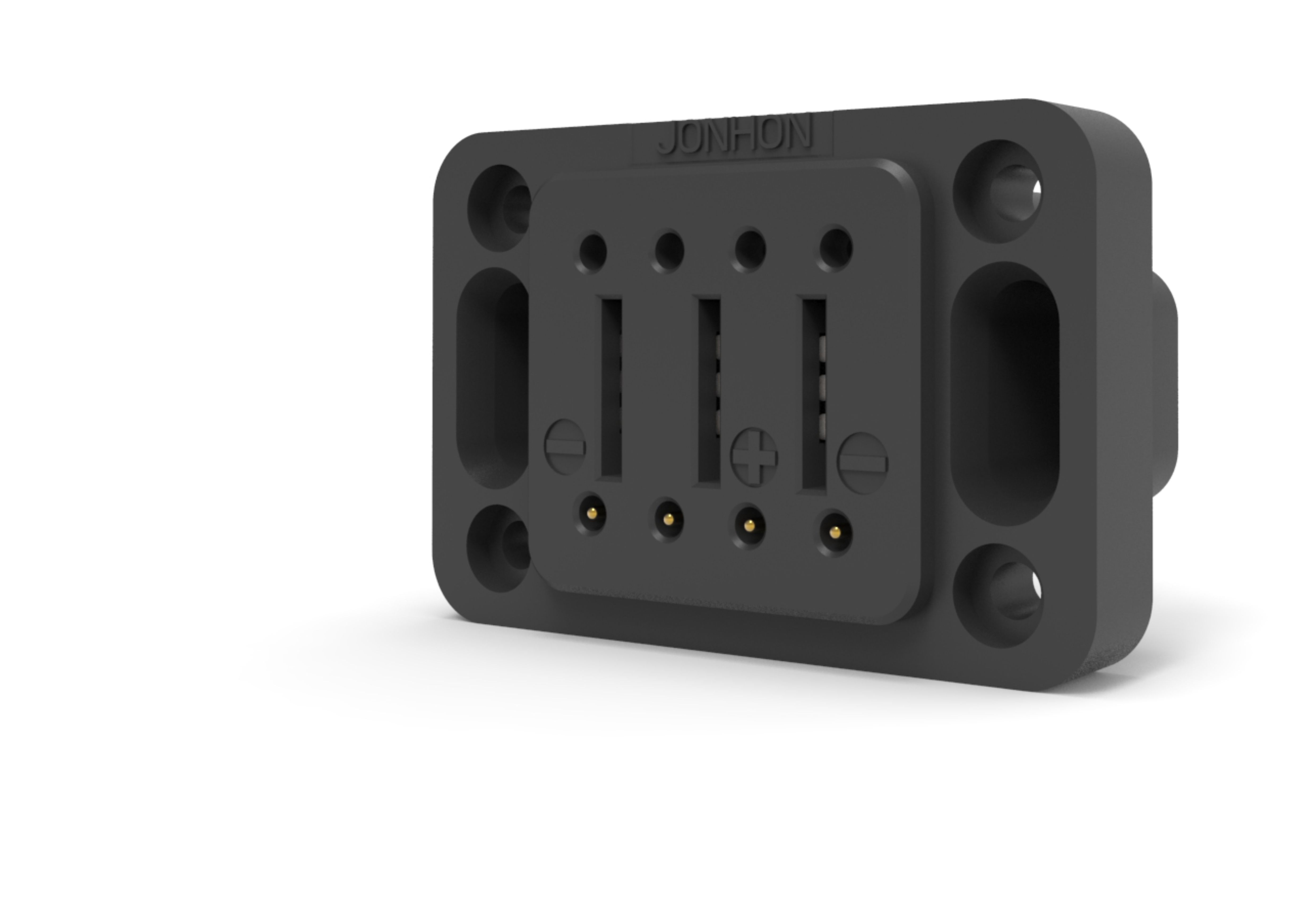

Power Transmission Series EBP-40

Rated current
≤40A, ≤2A (signal)
Withstanding voltage
500V DC
Protection class
IP67
Working temperature
-40℃~85℃
Durability
≥ 10000 cycles
Maximum outline
49*49mm, 49*32mm
Contact plating
Silver(P)+Gold(S), Nickel(P)+Gold(S)
Number of contacts
10 (2P+8S), 11(3P+8S)

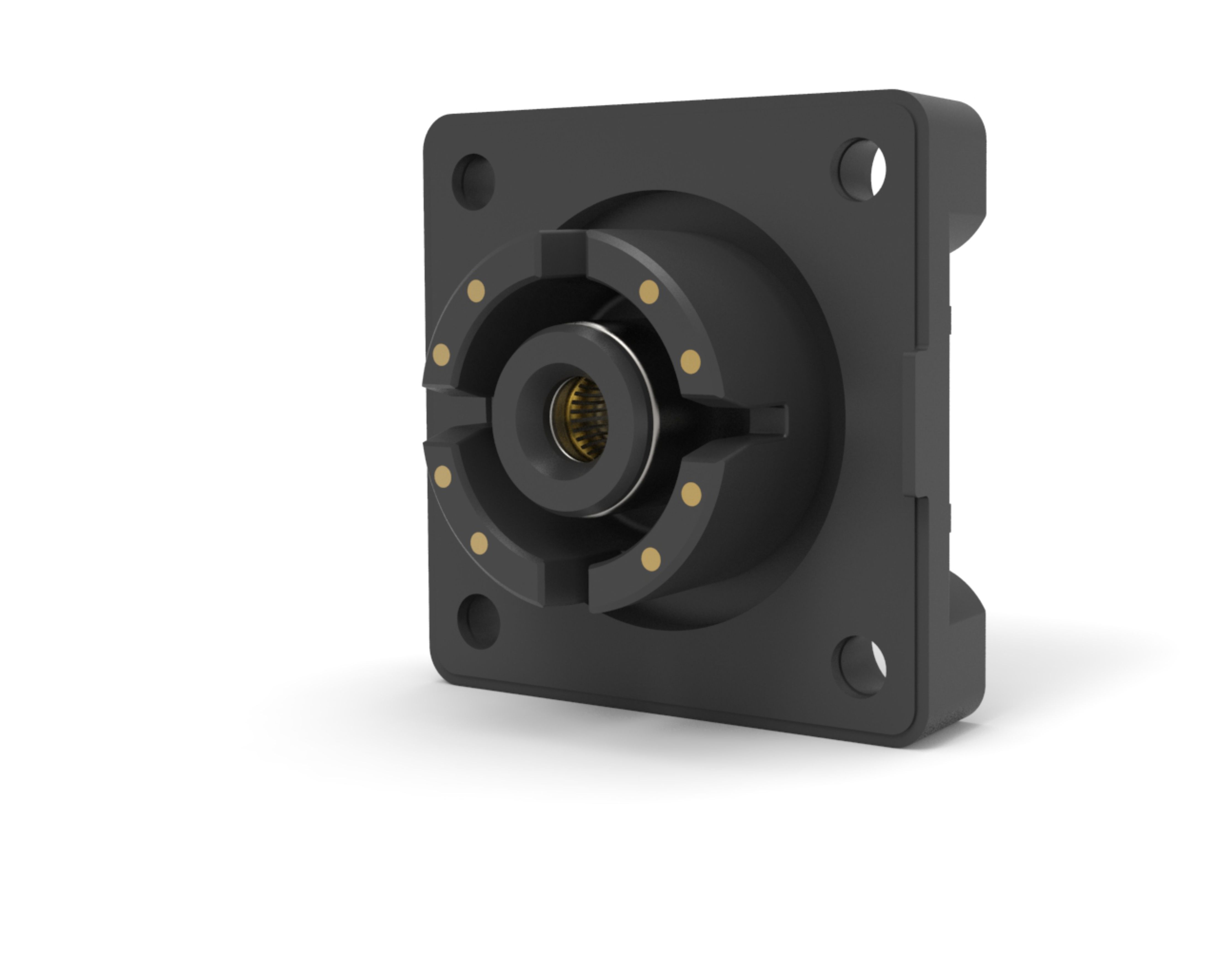

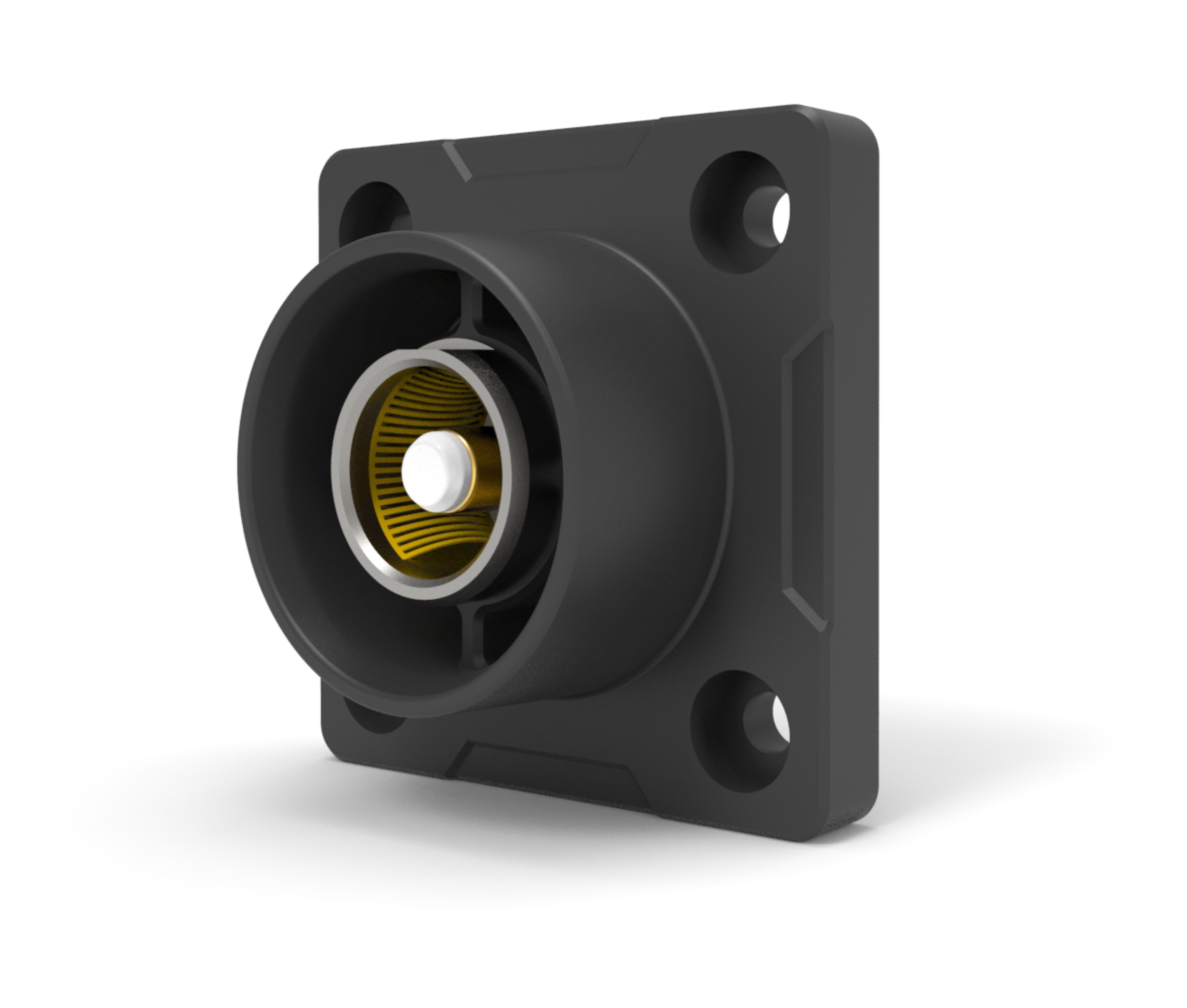

EBP-40Y
EBP-40Y

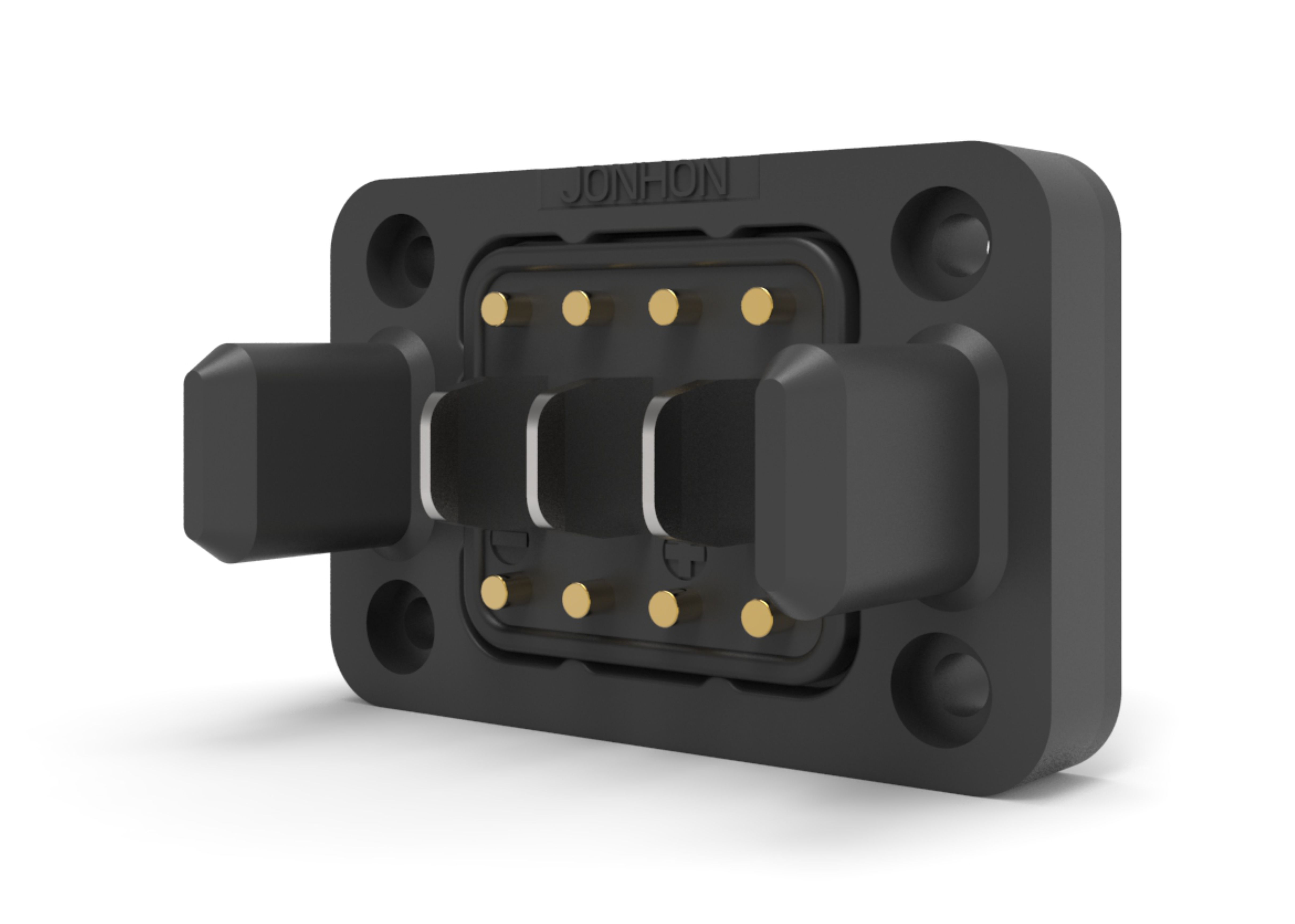

EBP-40J
EBP-40J

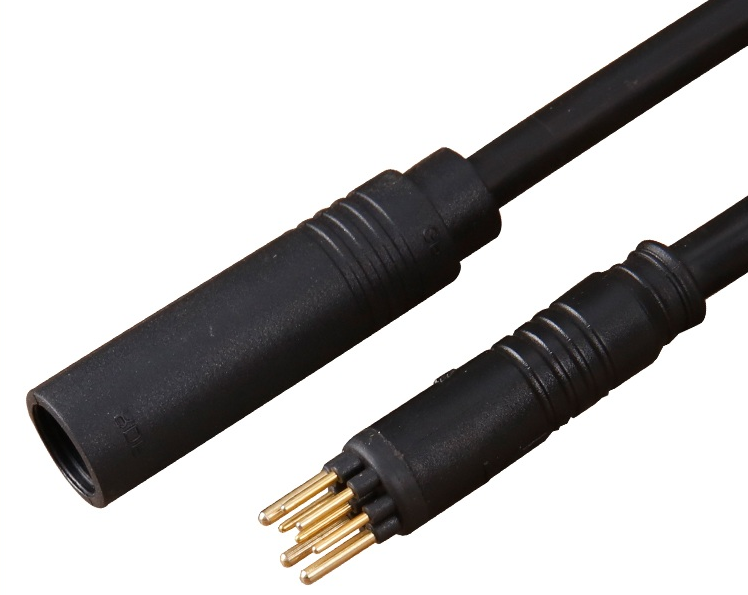

Power Transmission Series EB-388C

Rated current
≤20A, ≤5A (signal)
Withstanding voltage
100V DC
Protection class
IP67
Working temperature
-40℃~65℃
Durability
≥ 100 cycles
Maximum outline
15*30mm
Contact plating
gold(P)/silver(S)
Number of contacts
9 (3P+6S)
9 Pins

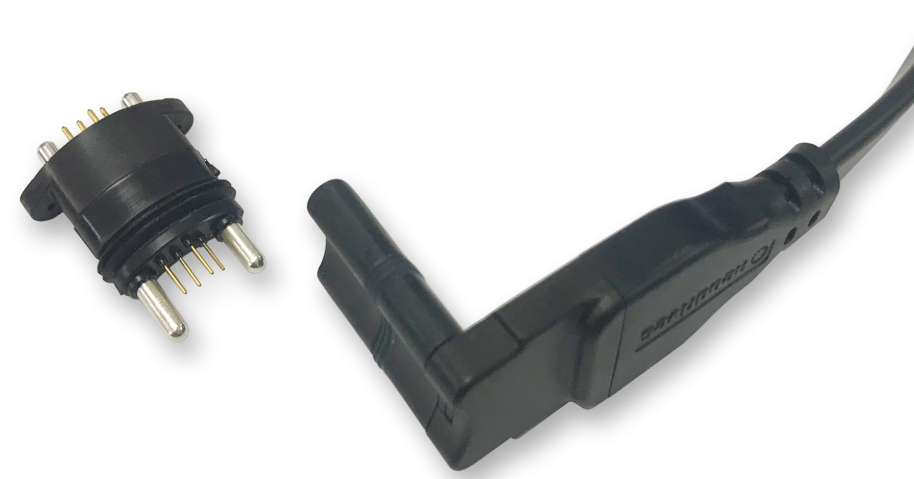

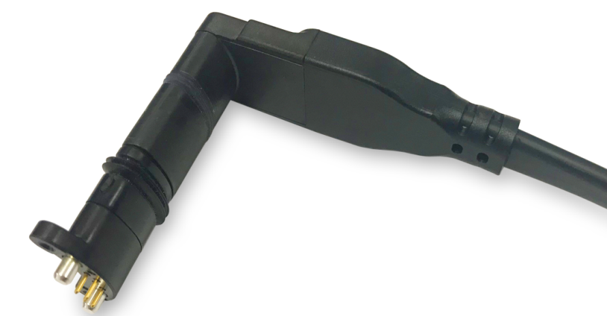

Power Transmission Series EB-339

Rated current
≤40A, ≤5A (signal)
Withstanding voltage
100V DC
Protection class
IP65
Working temperature
40℃~65℃
Durability
≥ 100 cycles
Maximum outline
20*8mm
Contact plating
gold(P)/silver(S)
Number of contacts
6 (2P+4S)
Cable information
SECTION:10.2*4.2mm,SIZE:2*2.5mm²+2*0.25mm²
6 Pins
6 Pins

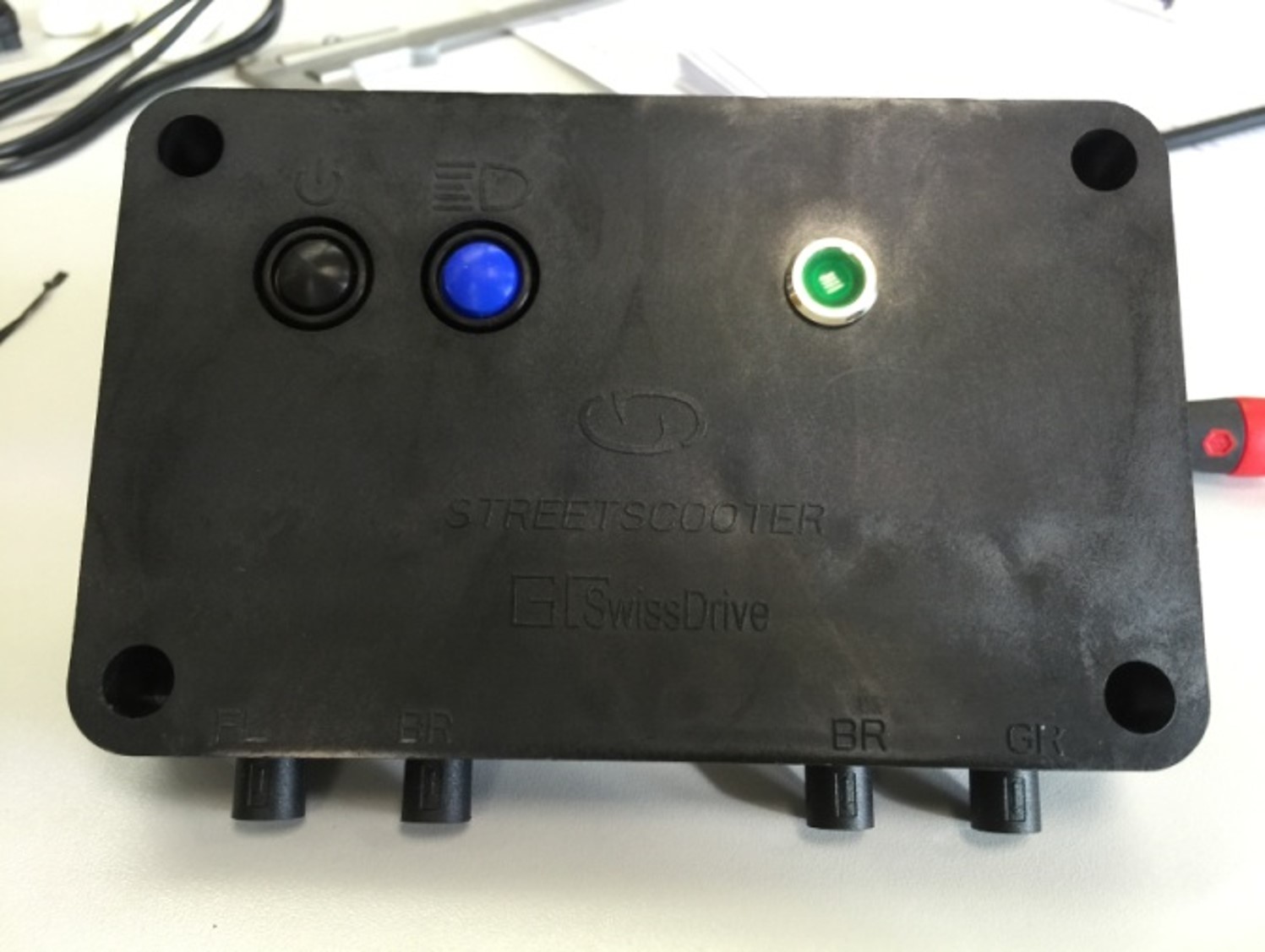

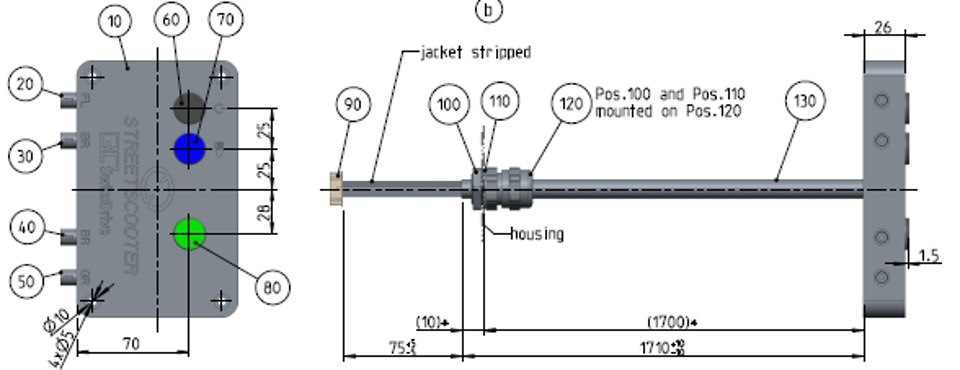

Control Box Series EB-366

We can customize all kinds of control boxes according to customer needs

Rated current
≤2A
Withstanding voltage
100V DC
Protection class
IP65
Working temperature
-40℃~65℃
Durability
≥ 50 cycles
Contact plating
silver
Number of contacts
10

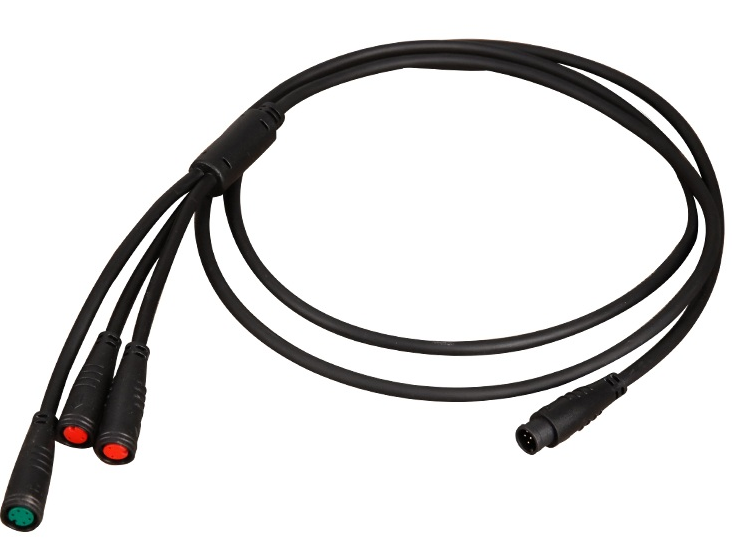

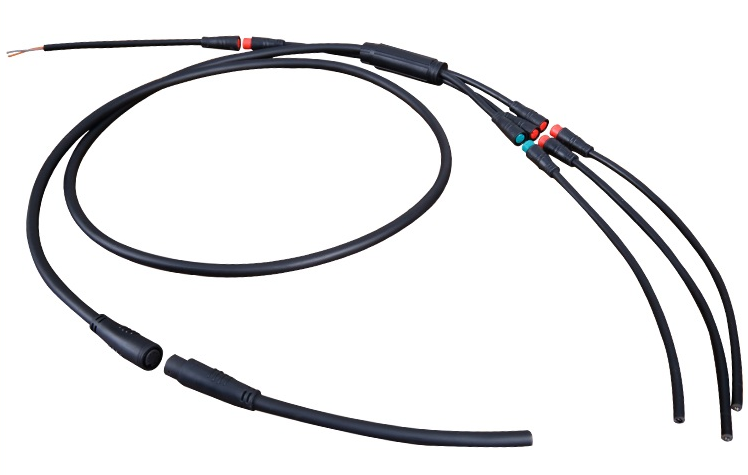

Customized Harness

We can customize all kinds of cable harness according to customer needs

Withstanding voltage
100V DC
Protection class
IP65
Working temperature
-40℃~65℃
Durability
≥ 100 cycles
