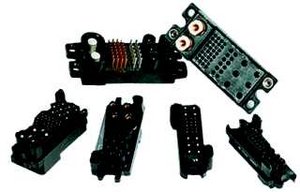

HIPO D-Series Electrical Connector

Features

  • Specially designed for modular power
  • Various forms of termination and six contact sizes
  • Two types of contact, spring wire socket and crown band socket
  • Sequenced mating by different contact lengths
  • Hot plug capability

Environment

  • Operating Temperature: -55 °C to +125 °C
  • Relative Humidity: 95% at 40 °C
  • Vibration: 10~2000Hz, acceleration: 98 m/s²
  • Shock: 85 m/s²

Qualifications

  • ISO 9001;2000
  • UL 1977
  • TÜV standard EN60950
  • CE certificate

Material

HousingGlass reinforced polyester, UL 94V-0, black
Housing dielectric strength1500 V DC for 1 minute
Insulation resistance> 5000 MΩ
ContactsCopper alloy
PlatingSilver 5 - 8 μm over Nickel
Gold 0,76 . 1,27 μm over Nickel
Mating cycle> 1000

Specification

Contact sizeContact Resistance (mΩ)Current rating (A)Withdrawal force per contact (N)
#0≤ 0.401509 - 20
#4≤ 0.51257 - 15
#8≤ 0.75754 - 10
#12≤ 1.0351.5 - 4
#16≤ 2.5150.4 - 2
#20≤ 5.050.3 - 0.8
